-50 kHz with 19° beam width
-200 kHz with 6° beam width
-Up to 900 m (3000 ft) range at 50 kHz
-8 internal broadband ceramics

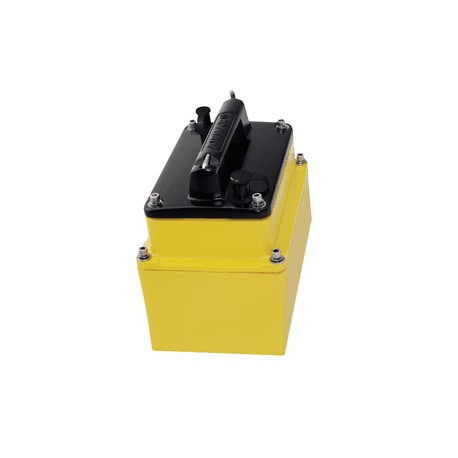

-In-Hull with plastic/urethane housing and yellow in-hull tank (can mount in existing M260 installed tanks)
-Suitable for fiberglass hulls
-Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
-Recommended for use with the SonarHub sounder module, Simrad NSSevo3 sport multifunction displays
The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.
S5100 high-performance CHIRP sonar module. Three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers.
