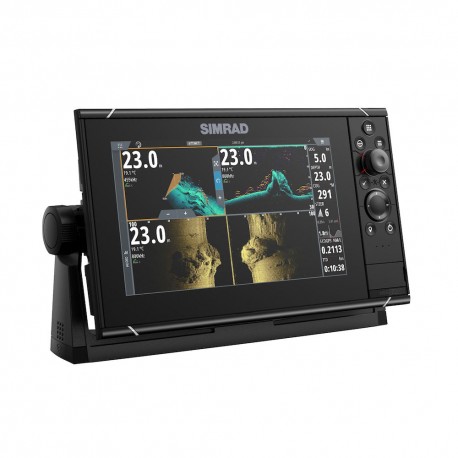

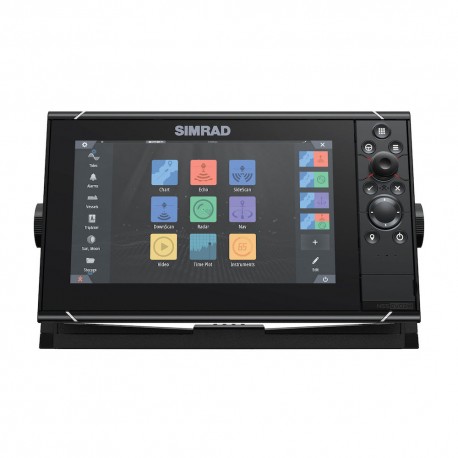

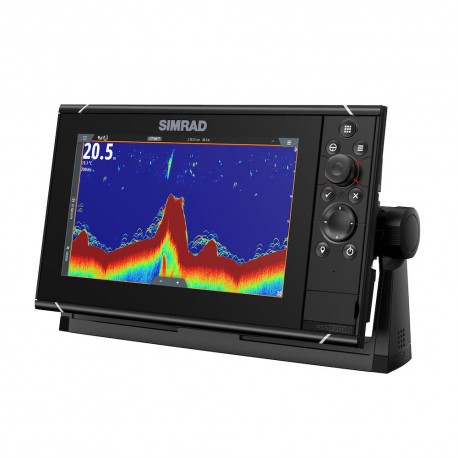

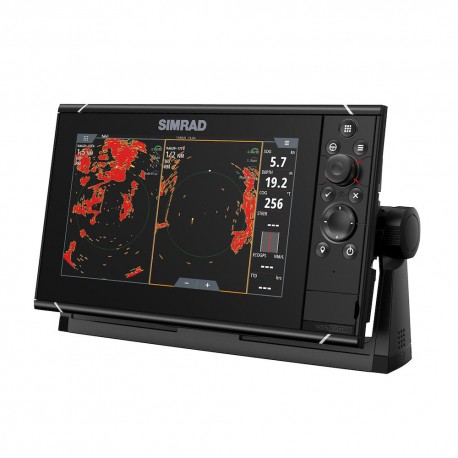

Simrad NSS9 evo3S

3.048,78 €

2.500,00 € Risparmia 18%

Tasse incluse

NSS9 evo3S Combo. Multi-function display. Built-in CHIRP Echosounder and StructureScan

Descrizione
Dettagli del prodotto

iMX 8 Integrated six-core processor for superior performance
9-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
Switch seamlessly between touchscreen and keypad control
Built in high-performance echosounder with 1kW CHIRP
Built-in GPS receiver and wireless connectivity
Control Simrad sonar, radar, autopilot, and other accessories
Industry-standard connectivity to engines, sound system, and more
TripIntel™ trip planning and support for automatic routing
Choose low-profile flush mounting or convenient bracket mounting
Download the Simrad App and connect with smartphones, tablets, and internet hotspots
Includes world basemap

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	Internal
Ethernet	1 x 5 pin yellow connector x 10/100 Mbit
N2K PGNs	Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components
NMEA 0183	1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi	Internal

Display

Backlight Color	White
Resolution	1280 x 720
Screen Brightness	1200 nits
Size and Type	High Visibility SolarMax HD® IPS optically bonded TFT
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	21 W
Recommended Fuse Rating	5A
Supply Voltage	10 - 31.2 V DC
Humidity	IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Shock and Vibration	100 000 cycles of 20 G
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 and 7

GPS

Correction	WASS, MSAS, EGNOS, GLONASS Galileo, Beidou, QZSS.SBAS
GPS Receiver Channels	34 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	Receive AIS data over NMEA 2000 or NMEA 0183 (NMEA 0183 has to be wired to all NSS processors)
Autopilot	Full auto pilot control and commissioning
Cartography included	World basemap
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster US Charts)
Digital Switching	C-Zone, Naviop
External Storage	2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
GPS	Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Internal Storage	16 GB
Multimedia	via SonicHub2, FusionLink, Sirius, JL Audio. USA only, **AUST. & NZ only)
Radar (inc. compatibility)	Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
Sonar (inc. compatibility)	Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Weather	SiriusXM via WM-3 / WM-4 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance - Metric, imperial	50 cm (1.7 ft)

Physical

Dimensions (W x H x D)	287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Mounting Type	Bracket (Supplied) or panel mount
Weight	1.41 kg (3.11 lbs.)

Other

Warranty Period	2 Years
Interface	Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi

Marca Simrad

Riferimento 000-15405-001

In magazzino 10 Articoli

Condizione Nuovo
