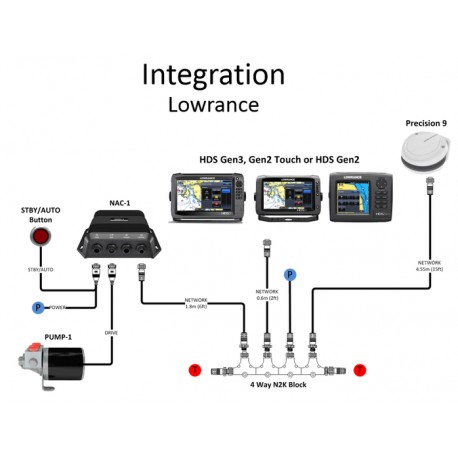

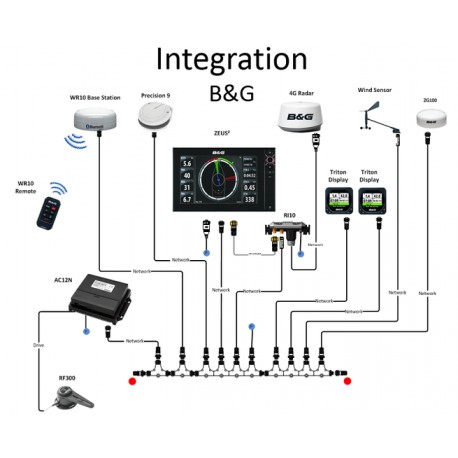

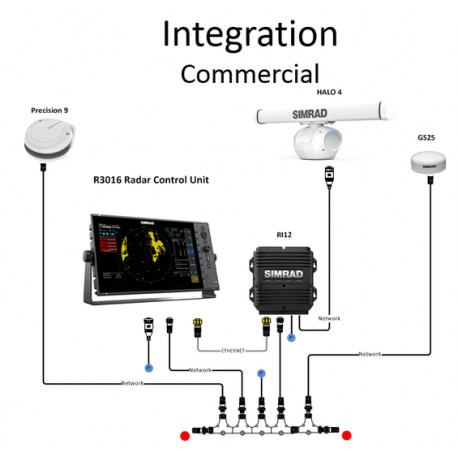

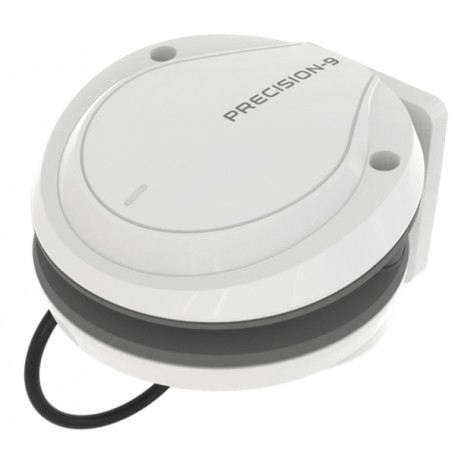

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
Unique selling points
Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
Heading and ROT calculated using sensor data from 9 axes of rotation and motion
Accurate and reliable solid-state sensor technology
Heading accuracy of ±2° after calibration

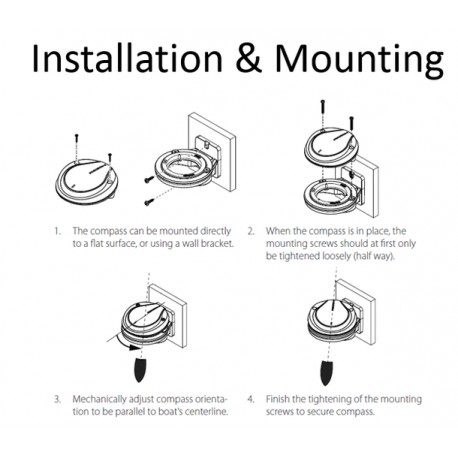

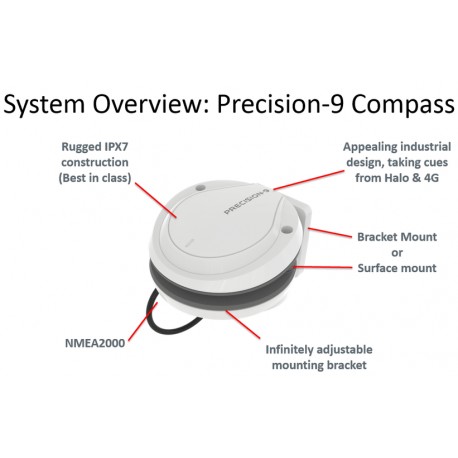

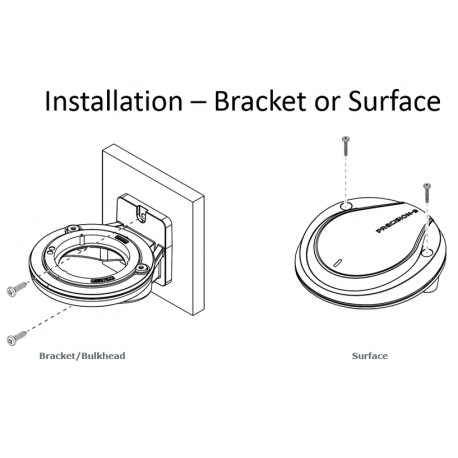

Easily adjustable mounting bracket allows bulkhead or up-mast installation
IPX7 waterproof. Best in class.
Simple installation with a single NMEA 2000® connection
Dimensions:
H: 36 mm (1.42”), W & D: 119 mm (4.69”)
Weight:
Module:|165 g (5.8 oz), Bracket:|130 g (4.6 oz)
Supply and interface:
8-16 V via NMEA 2000
Power consumption:
0.4 W
NMEA 2000 Load Equivalence No. (LEN):
1
NMEA 2000 ports (input/output):
1
Calibration:
Automatic (User Prompted)
Repeatability:
± 1.0° (or better)
Roll/Pitch range:
± 45°
Heading accuracy:
± 2° after calibration

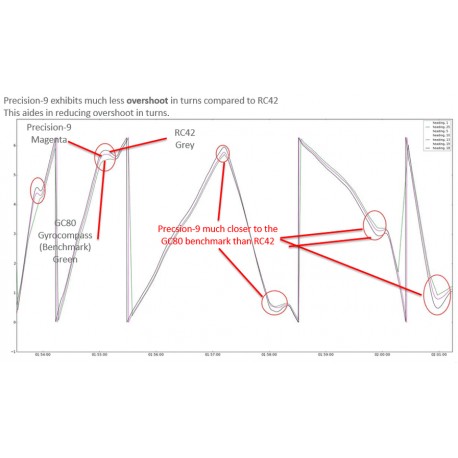

Dynamic performance:
with random excitation of ± 10° at max 1 Hz:|Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
